Sanitaryware series
BHOLS EWC & Squatting Pans
Six floor-mounted EWC pans in S-trap and P-trap, and five squatting pans in 20-inch and 23-inch — Orissa and City patterns. This is the value end of the range and the part that gets specified in volume: what matters is the trap type and the size, because both are fixed by the drain already cast into the floor.
Enquire about BHOLS EWC & Squatting Pans
11 models
Every model in BHOLS EWC & Squatting Pans

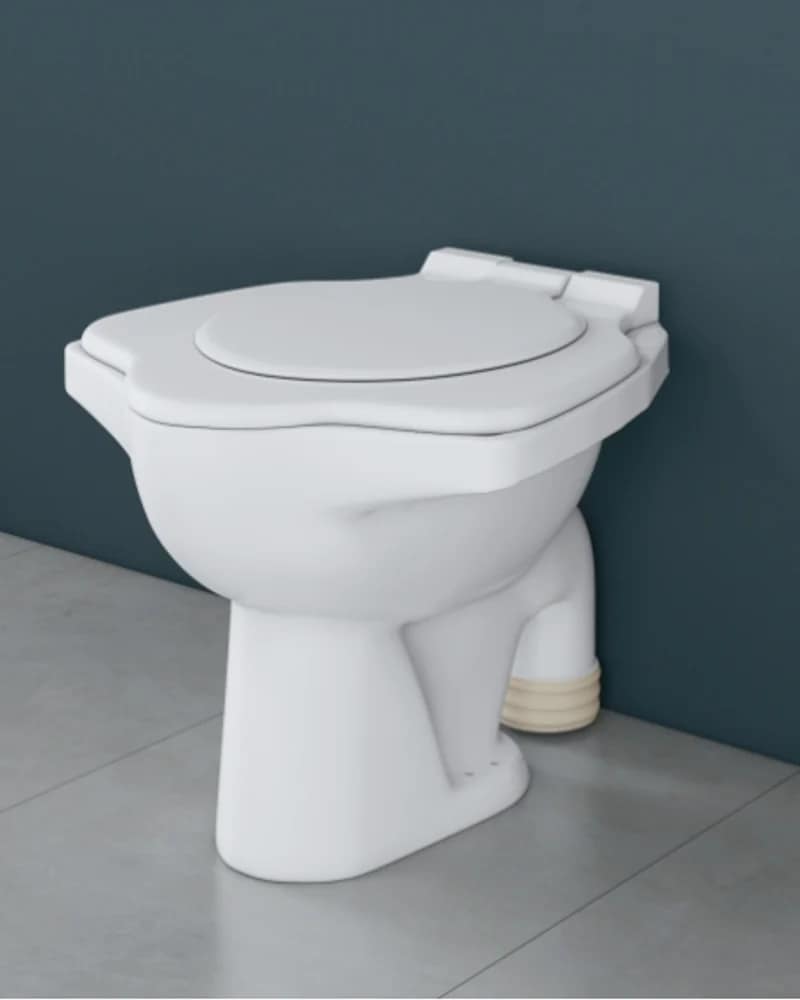

Anglo-S 8101
- 585 × 480 × 405 mm

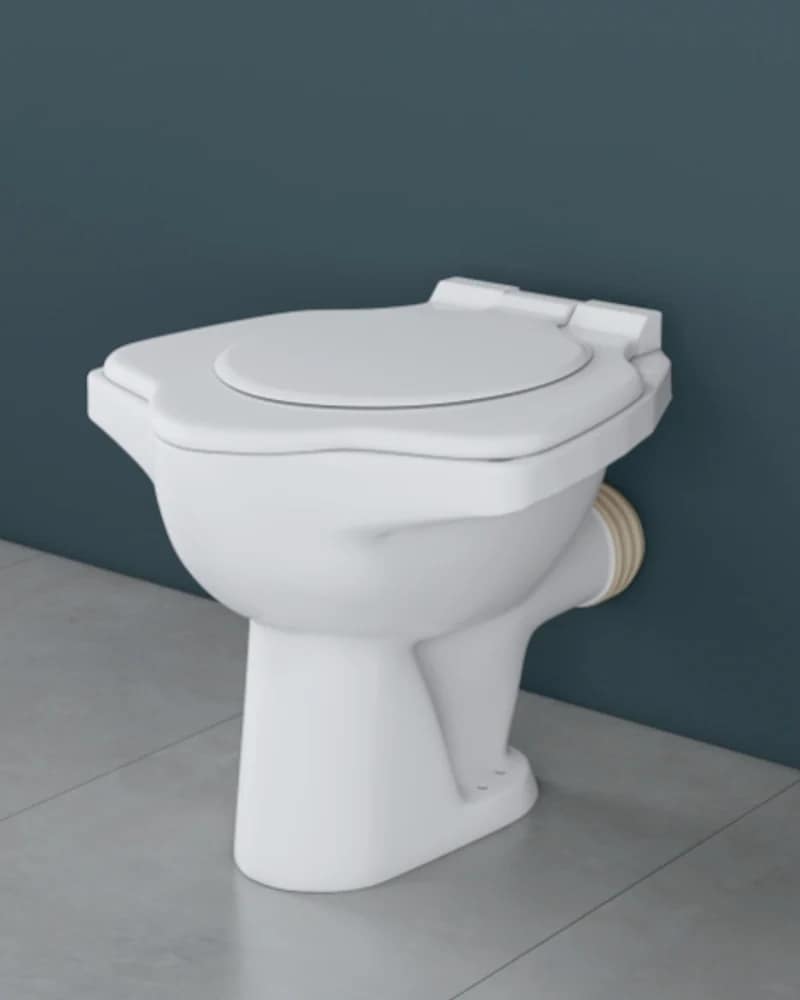

Anglo-P 8102
- 575 × 480 × 390 mm

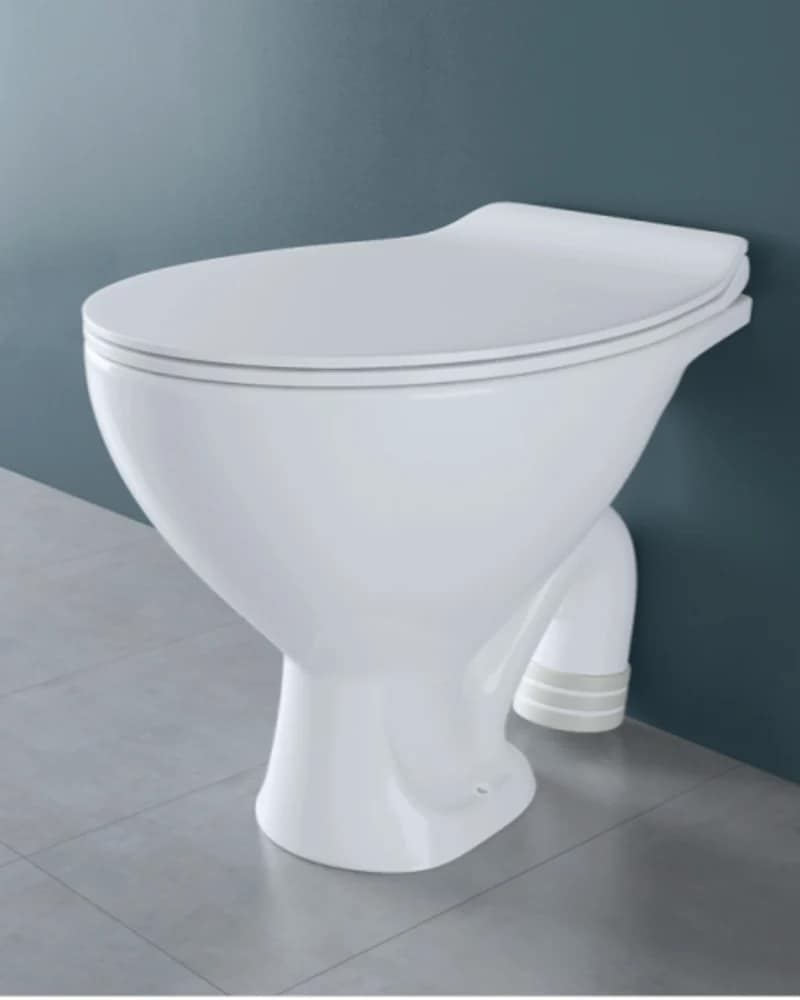

EWC-S 8103
- 550 × 365 × 420 mm

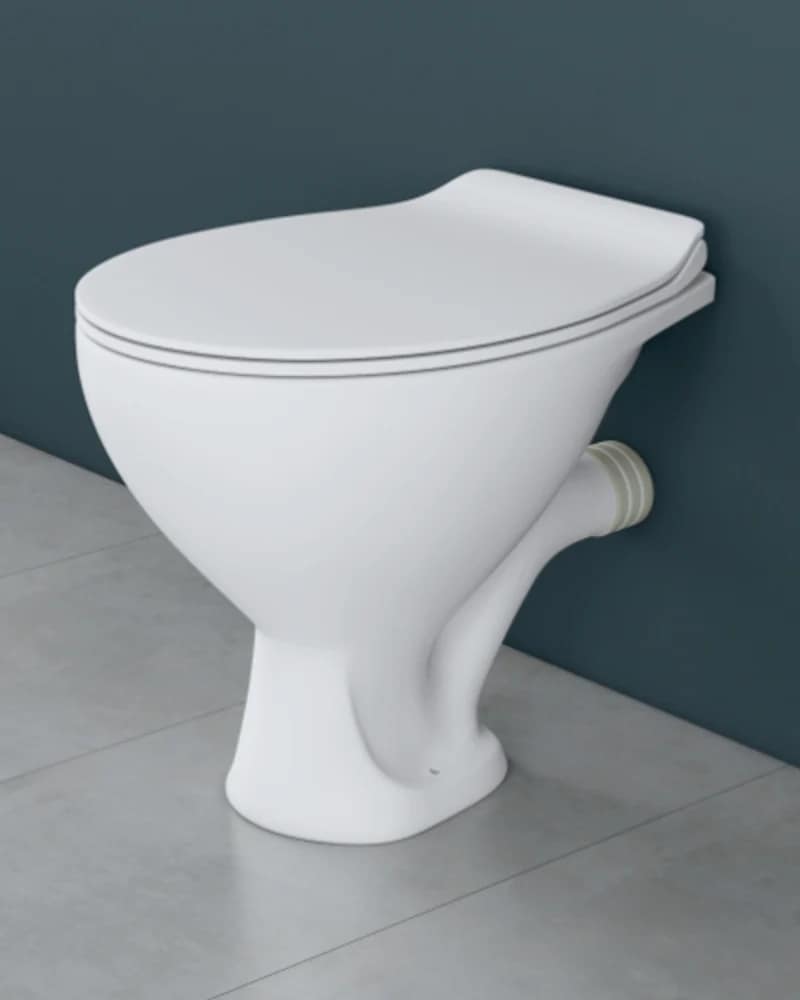

EWC-P 8104
- 540 × 365 × 420 mm

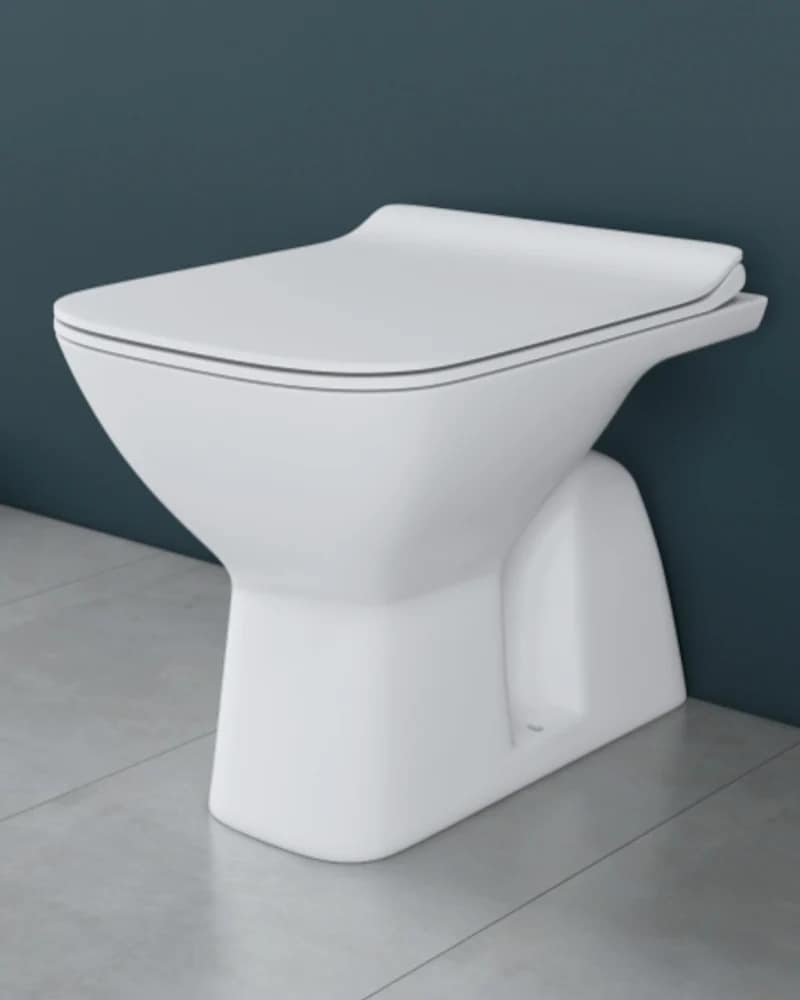

Rect 8105
- 555 × 335 × 410 mm

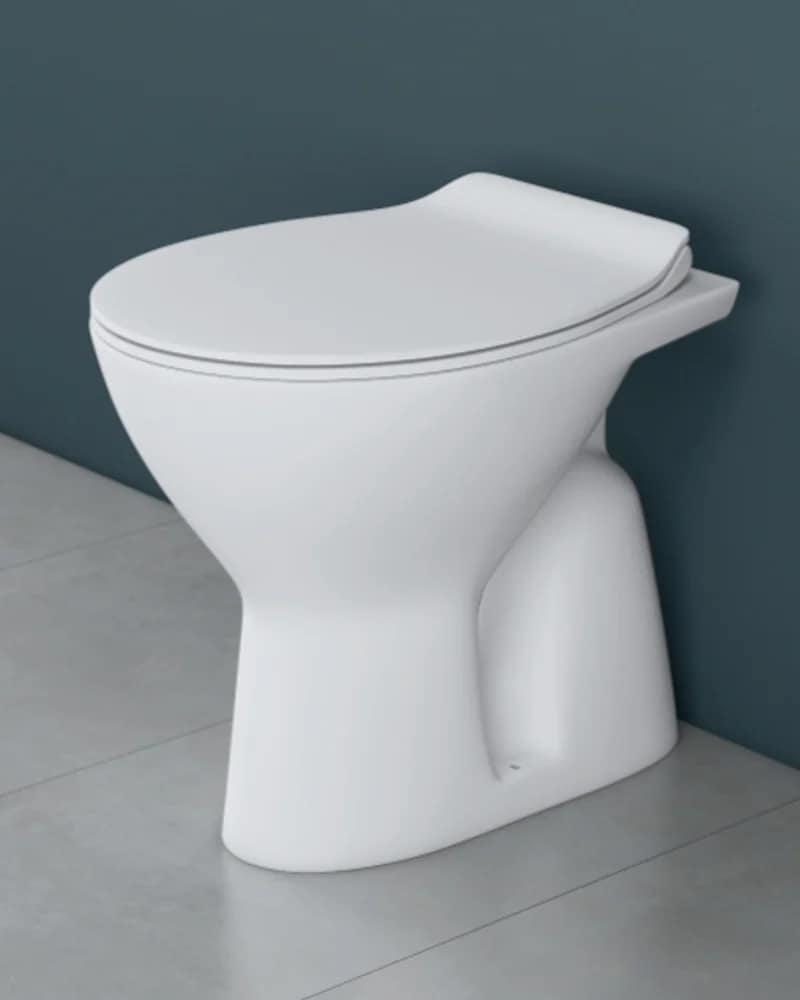

Kel 8106
- 565 × 365 × 415 mm

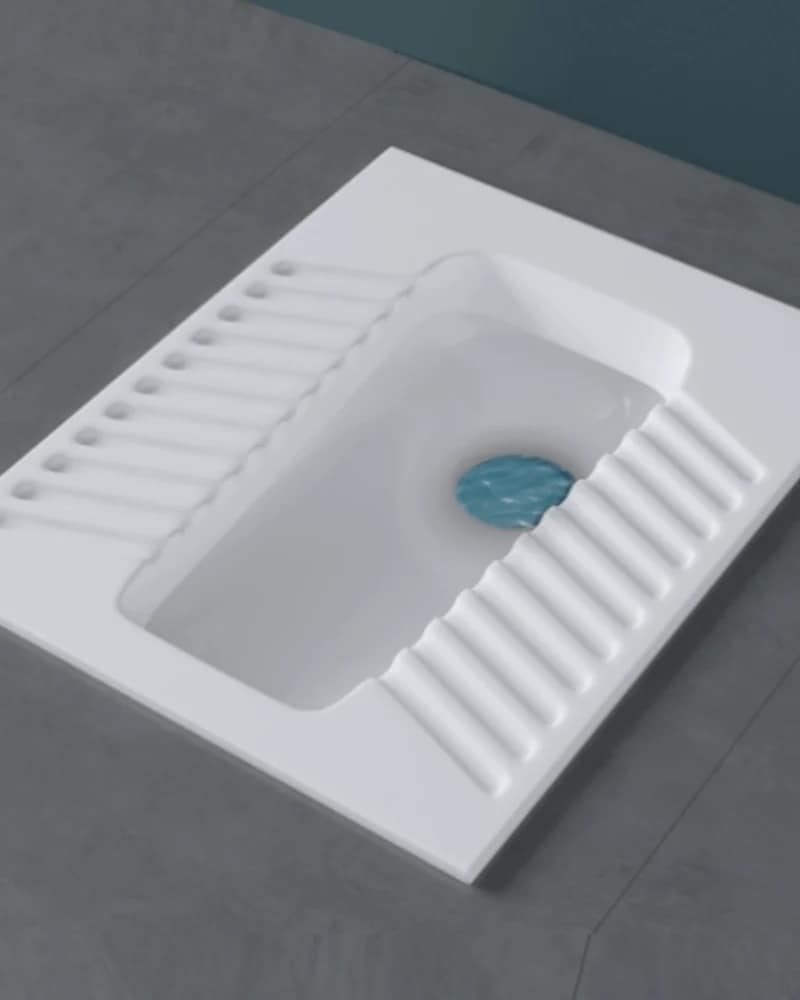

20" Orissa Pan 8001
- 525 × 430 × 240 mm

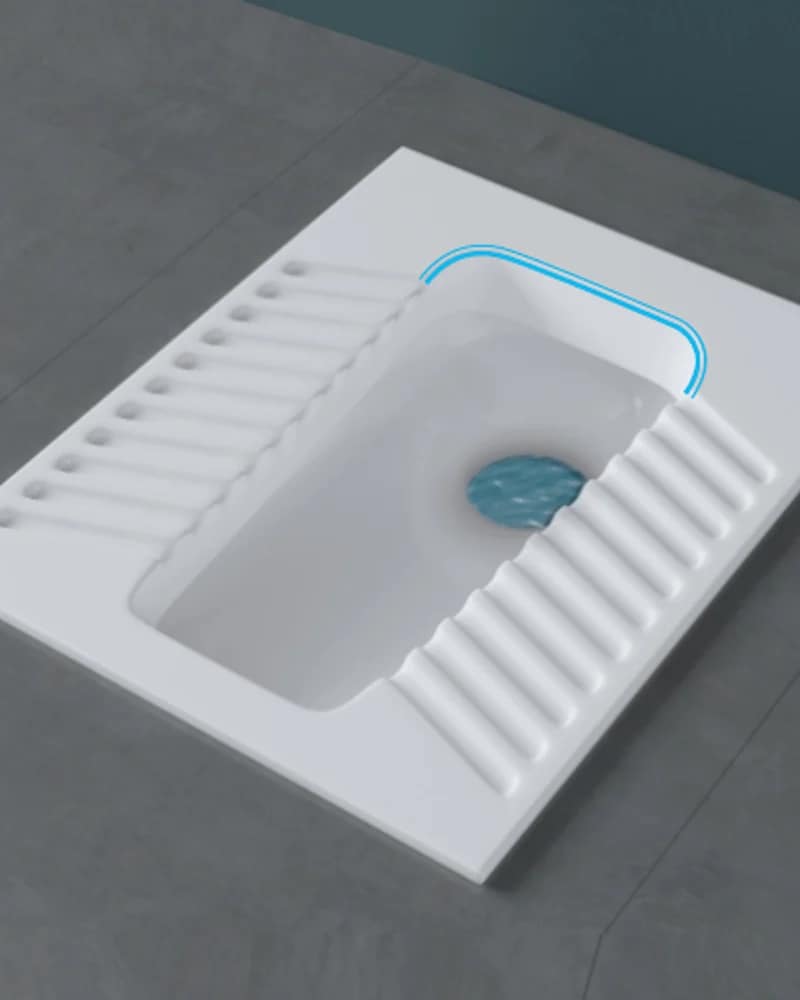

23" Orissa Pan 8002
- 590 × 450 × 280 mm

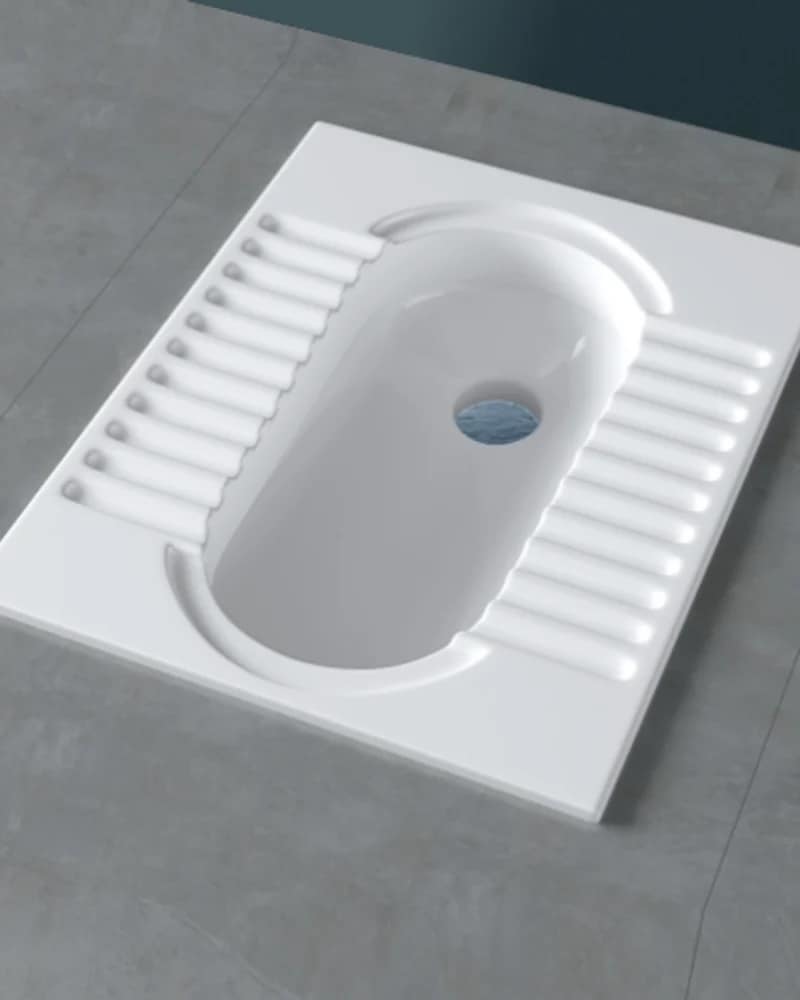

20" City Pan 8003
- 530 × 430 × 190 mm

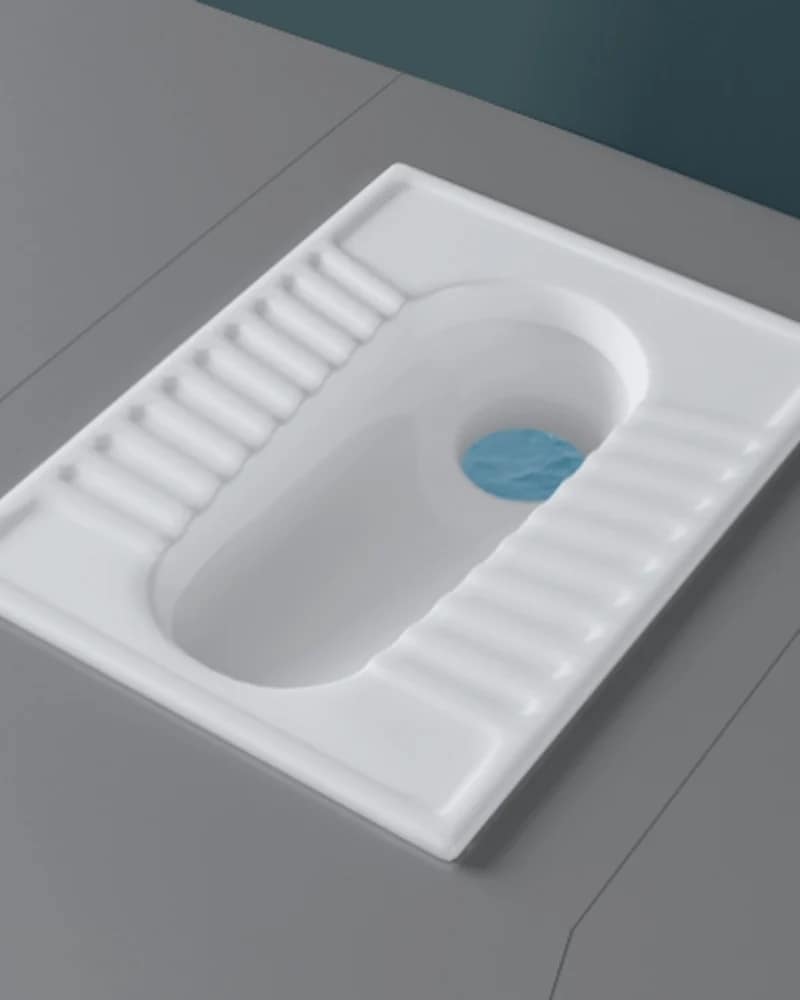

20" Orissa Pan 8004
- 530 × 430 × 265 mm

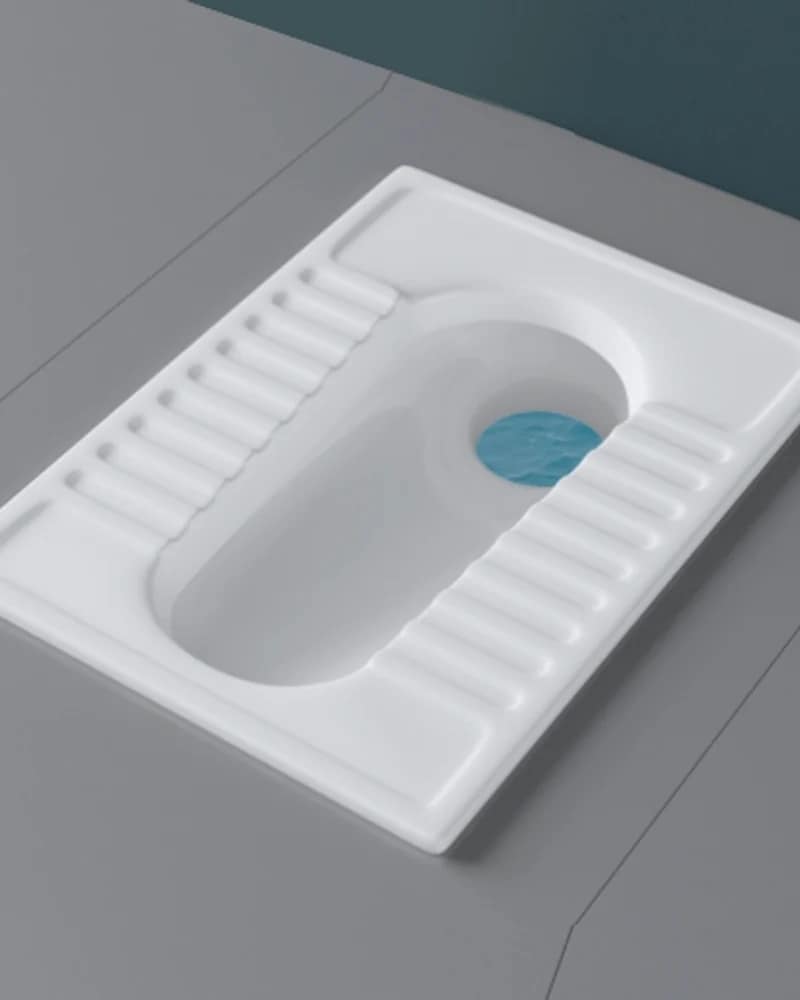

23" Orissa Pan 8005
- 590 × 445 × 305 mm
Specifications
| Series | BHOLS EWC & Squatting Pans |
|---|---|
| Category | Sanitaryware |
| Finish | White glazed |
| Body type | Vitreous china |
| Application | Bathroom |
| Models in series | 11 |
| Brand | Bandhan |
| Availability | In stock at Bandhan Ceramic showrooms |
More sanitaryware series
View all sanitaryware →Sanitaryware buying questions
What buyers ask us before choosing sanitaryware like the BHOLS EWC & Squatting Pans series.
What is the difference between an S-trap and a P-trap WC?
The trap is the outlet path that carries waste away and holds a water seal against odour. An S-trap exits downward through the floor and is standard in most Indian construction. A P-trap exits horizontally through the wall and is common in apartments and newer buildings. Your existing plumbing determines which you need — check before choosing a model, because the two are not interchangeable.
What is rough-in distance and why does it matter?
Rough-in is the distance from the finished wall to the centre of the waste outlet in the floor. Indian bathrooms are usually built at 225 mm or 300 mm. If you buy a WC with a different rough-in, it will either stand away from the wall with a visible gap or will not connect at all. Measure it once, write it down, and bring it to the showroom.
Which wash basin is best for a small bathroom?
A wall-hung or half-pedestal basin, because nothing sits on the floor and the room reads as larger. If you need storage, a compact table-top basin on a narrow 400–450 mm deep counter works well. Avoid full-pedestal basins in tight spaces — the pedestal blocks floor cleaning and adds visual bulk without adding storage.
What is vitreous china and why is it used for sanitaryware?
Vitreous china is a clay body fired at very high temperature and coated with a vitreous glaze, producing a surface that is essentially non-porous. That is what makes it stain-resistant, hygienic and easy to clean, and why it has been the standard material for basins and water closets for over a century. The quality of the glaze is what separates a good piece from a cheap one.
How much water does a dual-flush cistern save?
A dual-flush cistern offers a 3-litre half flush and a 6-litre full flush, against a single 10–12 litre flush on older cisterns. For a family of four, that typically works out to tens of thousands of litres saved a year. Every dual-flush unit we stock is designed for the water pressures found in Indian overhead-tank systems.
